China P6 SMD Full Color Indoor Rental LED Display Screen For Shopping Mall
Product Attributes
| Attribute |
Value |
| Pixels |
6mm |
| Voltage |
DC5V |
| Refresh Rate |
>=180HZ |
| Maximum power |
600m2 |
| Module size |
192mmx192mm |
| Brightness |
5000cd/m2 |
| Certificates |
CE,RoHs,FCC,ISO |
| Dot density |
27778 |
| Driving mode |
1/8 scan |
| IC |
MBI 5024 IC |
| Chip brand |
Epistar led |
Product Description
Customized Full Color LED Video Board HD P6 SMD Electronic Outdoor Advertising LED Screen
Great sense of fashion brings a different visual experience
Ultra-high brightness, long distances under the sun's glare are still clearly visible. The color uniformity of the display screen is super high, and the display screen is more delicate. Supporting curved splicing can better integrate with the surrounding environment. In the outdoor environment, there is a higher visual impact.
Super waterproof resists
The unique waterproof case makes the advertising screen no longer afraid of the storm. The independent drainage holes and sealant effect are sufficient for normal operation under outdoor all-weather conditions, and the waterproof level is high. Anti-UV, anti-deformation module kit to ensure that the screen body is not deformed.
Seamless
No seams The LED screen can be stitched in any direction, any size, any shape. Compared to rear projection and liquid crystal splicing, there is no difference in brightness between cells or splicing black seams, rendering a perfect visual effect. Uniformity of luminance and chromaticity Exquisite unit structure ensures the consistency of the dot spacing; the screen is uniform, no separation, no black lines, no missing information, and real seamless splicing screen.
Wide viewing angle
Vertical and horizontal directions with an ultra-wide 160-degree viewing angle allow viewers to enjoy high-quality display at all angles, you can get the best look from all directions on the screen. No color patches, black spots, mosaics, etc.
Low energy consumption and Zero noise
Design by Ultra-thin aluminum box, high precision, easy installation and maintenance, at the same time, with superior heat dissipation, low consumption and high stability.
Product Parameters
| Model Number |
HX-P6-8s |
Best Viewing Distance |
6M-50M |
| Model Size |
192MM*192MM |
Pixel Resolution |
160°(W)120°(H) |
| Pixels Density |
27777dots/㎡ |
Temperature |
Storage: -35℃/+85℃ |
| Pixel Pitch |
6mm |
Operation Humidity |
10%-75% |
| Package Mode |
SMD3535/2727 |
Working Voltage |
AC220V±10% |
| Pixel Resolution |
32Dots(W)*32Dots(H) |
Average Power Consumption |
≤320W/m2 ≤370W/m2 |
| Module Thickness |
14.85MM(Non magnetic column) |
Max Power Consumption |
≤750W/m2 ≤900W/m2 |
| Model Weight |
0.45kg |
Control Method |
Synchronization |
| Drive Type |
Constant Drive |
Driving Device |
Constant Drive |
| Brightness White Balance |
≥5500CD/m2 |
Refresh Frequency |
≥400HZ |
| Thermal Discharge |
Fan Pcs |
Frame Frequency |
60HZ |
| Cabinet Dimension |
576MM*576MM |
Luminance Level/Color |
RGB256 |
| Power Supply |
5V/40A*2PCS |
Gray Level |
65536 |
Note: we can adjust the date as clients requirement, kindly feel free to contact us for any questions
Packaging & Shipping
- CE, FCC, RoHS, C-Tick approved
- High brightness: >6000nits, high refresh
- Superior uniformity, good display effect
- 2 years warranty, best after-sales service
- Video, flash, animation, graphic, text available
- Installation structure drawing offered FOC
- Factory visiting and inspecting is welcome
- OEM service offered
- Models available:
- Indoor led display-P2.5mm, P3mm, P4mm, P5mm, P6mm, P10mm, etc.
- Outdoor led display-P5mm, P6mm, P8mm, P10mm, P16mm, etc.
Product Features
- Brand new mask design makes the light from LEDs almost non-reflection
- Cabinet design of the module uses high temperature spraying technology to improve the anti-rust function greatly
- Use high quality LEDs with high luminous efficiency and low brightness decay to make the display stable
- The flatness of module erection side is controlled within 0.2mm, so as to ensure the flatness of the whole led display
- With a full range of anti-static measures, effectively reducing the damage to LED from the static
- Advanced technology of production ensures the quality and lifetime of LED display
- Good uniformity in color solves the problem of mosaic well
- With wave-soldering process and green oil protection from Oxygen on PCB
- Utilization rate of power supply is improved a lot, reducing the failure rate of the power supply
- Using good quality silicon gel in the front and waterproof rubber in the rear to improve the waterproof performance
- Applied to all kinds of severe environment outside because of its high reliability and performance
FAQ
Q1: What is your response time for inquiries?
A1: Your inquiry related to our products or price will be replied in 24hrs
Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.
Q3: What's the pixel pitch for Outdoor LED Display Screen?
A3: Outdoor (P6mm / P8mm/P10mm)
Q4: Where is it used for?

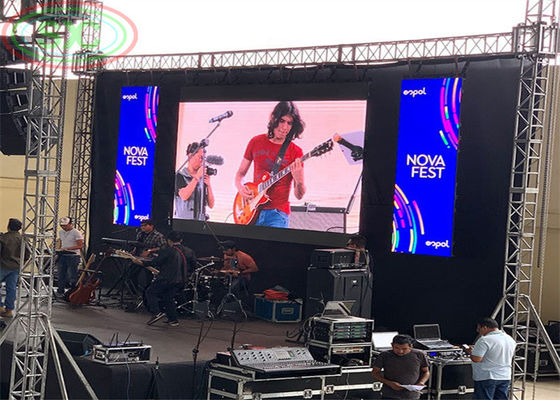

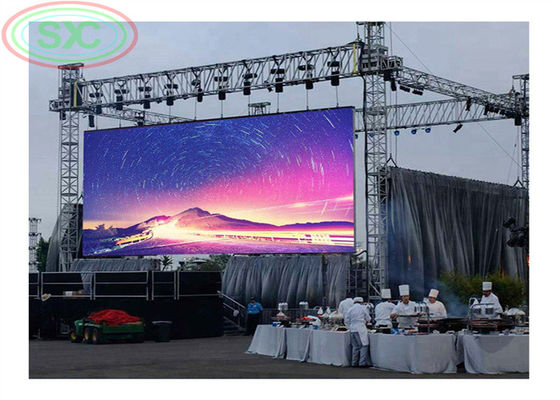

A4: Outdoor & rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.
Q5: What's the controlling system?
A5: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.
Q6: How about the size of project?
A6: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
Q7: How about your service?
- Lifetime free maintenance and upgrade
- Complaint respond period not exceed 24 hours
- Customer satisfaction tracking report
- Free technician training
- Full set of documents free of charge
- Special service for big project
Payment Terms
- Payment: T/T, 30% deposits before production, 70% balance to be paid before deliverying
- Shipping freight are quoted under your requests
- Shipping port: ShenZhen, Mainland China
- MOQ: 1pcs
