Shenzhen Shichuangxinke Electronics Co., Ltd
zawodowe sprawia, dobrej jakości, zapewniają doskonałe produkty i usługi dla każdego klienta.
 |
| Place of Origin: | China ,Guang Dong |
| Nazwa handlowa: | Shichuangxinke |
| Orzecznictwo: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P4.81 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| Cena: | USD1200-1400per square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Zasady płatności: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 4.81 | Pixel configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/13 scanning | Module Size: | 250x250 |
| cabinet size: | 500x500mm | certificates: | CE RoHS FCC CCC UL |
| application: | stadium,airport,shopping mall,street advertising | material: | aluminum |
| warranty: | 3-5 years |

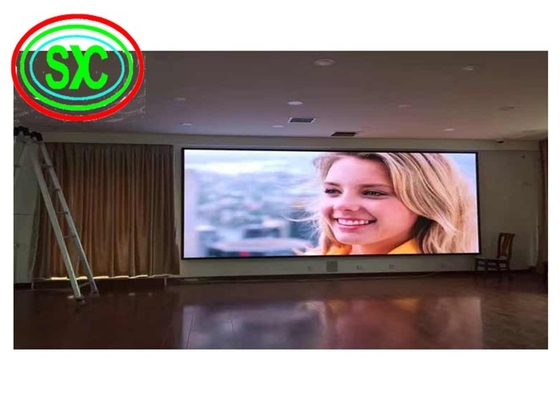

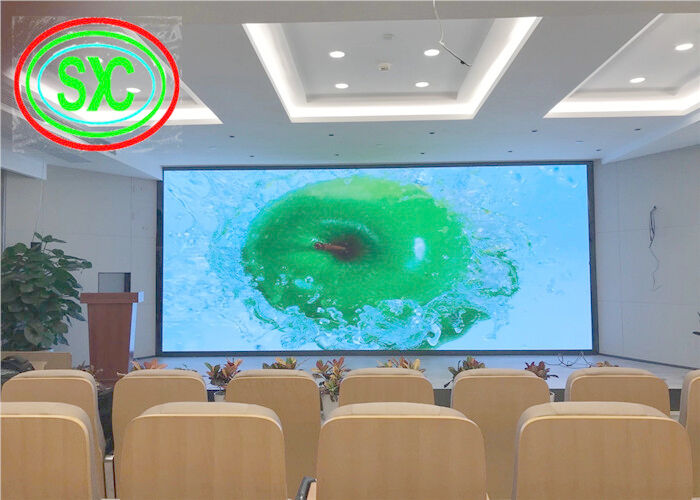

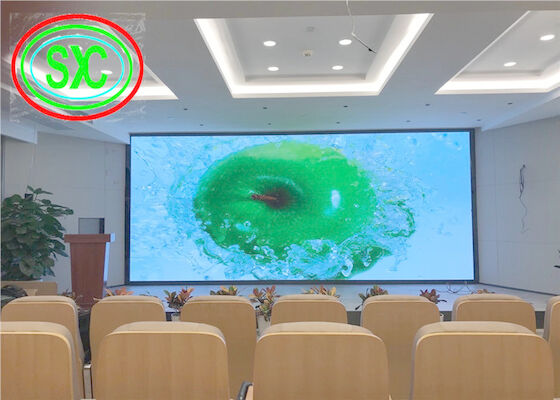

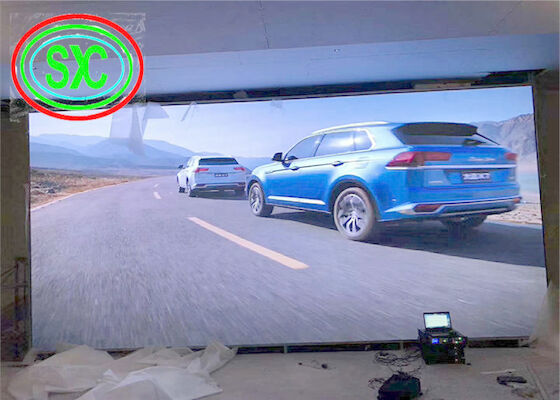

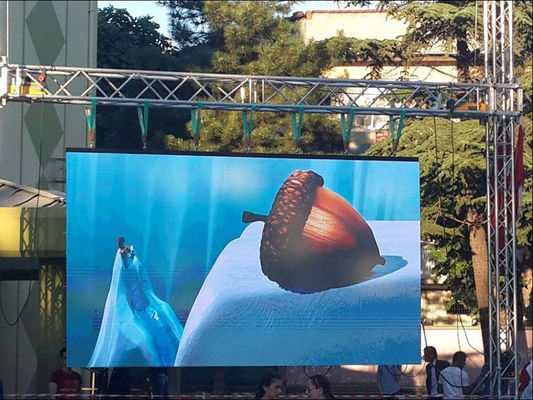

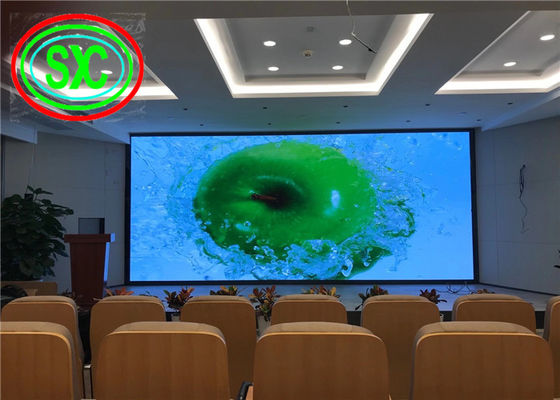

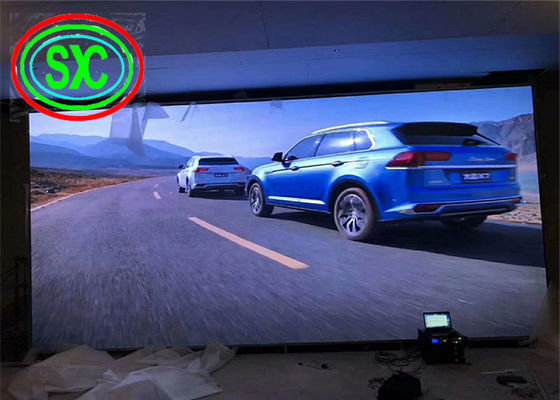

4.81mm pixel pitch rental module LED display hire 500x500mm cabinet
Specifications :
| outdoor SMD P4.81 | |||||
| Resolution/mm | 4.81 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 43222/m² | ||||
| Module resolution | 52z52 | ||||
| Module size/mm | 250x250mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/13 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Features:
1. Ultra-thin and ultra-light
2. Die-cast aluminum cabinet, seamless splicing, high precision
3. Standard cabinet size: 500x500mm, convenient for area calculation
4. Efficient and fast transportation and screen assembly
5. SMD black light, wider viewing angle, high contrast (5000:1), soft image
6. The cabinet is connected with a special buckle structure, no other tools are required
7. Universal cabinet for standard modules, shortening production cycle
Pre-sale Service
Providing pre-service instructions and product knowledge training.
Providing competitive products and sales consultation.
Providing instructions on designing and decorating exhibition halls.
Providing regional distribution guarantee.
In-sale Service
Develop customized products.
Provide product documentation and qualification certificates.
Assist in project business negotiations based on specific circumstances.
Assist in on-site measurements.
After-sale Service
Providing perfect logistics system to guarantee punctual delivery.
Providing training and support for installation staff and after-sale service staff.
Providing training on product features, operation, repair, maintain of products.
Providing support for debugging and problem checking.
Providing two-year quality guarantee.
Tracking Service
Inspecting and re-checking the quality of the pre-sale service, in-sale service, and after-sale service
Quality Guarantee
Quality Guarantee: High standard, precision and zero defects
Seeking Perfection
Quality supervision involves each procedure with scientific arrangement and production scheduling, which facilitates the long-run development of the company. Both the ISO9001 quality certification standard and the ERP system are strictly implemented on procurement and production of raw materials, as well as package and storage of semi-finished products and finished products. The purpose is to comply with the international standard and make products and services better. Strict quality control is the key for TEKVISION’s continuous development, and is the strong power for expansion.
Constant Perfection
Striving for perfection is the guarantee for our high-quality products. TEKVISION combines process management and attention to details for continuous innovation management and professional dedication, and incessantly guides all staff to explore new and creative quality management methods. Our Mission: Starting with meeting new challenges one at a time.
Two-Years Quality Guarantee
During the two-years warranty period, if the product is damaged under normal operating conditions, TEKVISION promises to take corrective measures to maintain consumers' interests.
FAQ
Q1: What can you buy from us?
A: Rental LED Display, Outdoor LED Display, Indoor LED Display, Transparent LED Screen, Floor Tile Screen, Creative Design LED Screen and Etc.
Q2: Can I customize it?
A: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q3: What is Price per square meter of screen?
A: Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
Q4: What is the warranty?
A: 5-8 years Warranty.
Q5: How many days for producing?
A: 1-3 days for inventory products and 10-15 days for customized products.
Q6: How to operate and use it?
A: It can by controlled by PC and Smartphone very easily.
Welcome to inquiry for more information. We provide video guidance and remote assistance.
